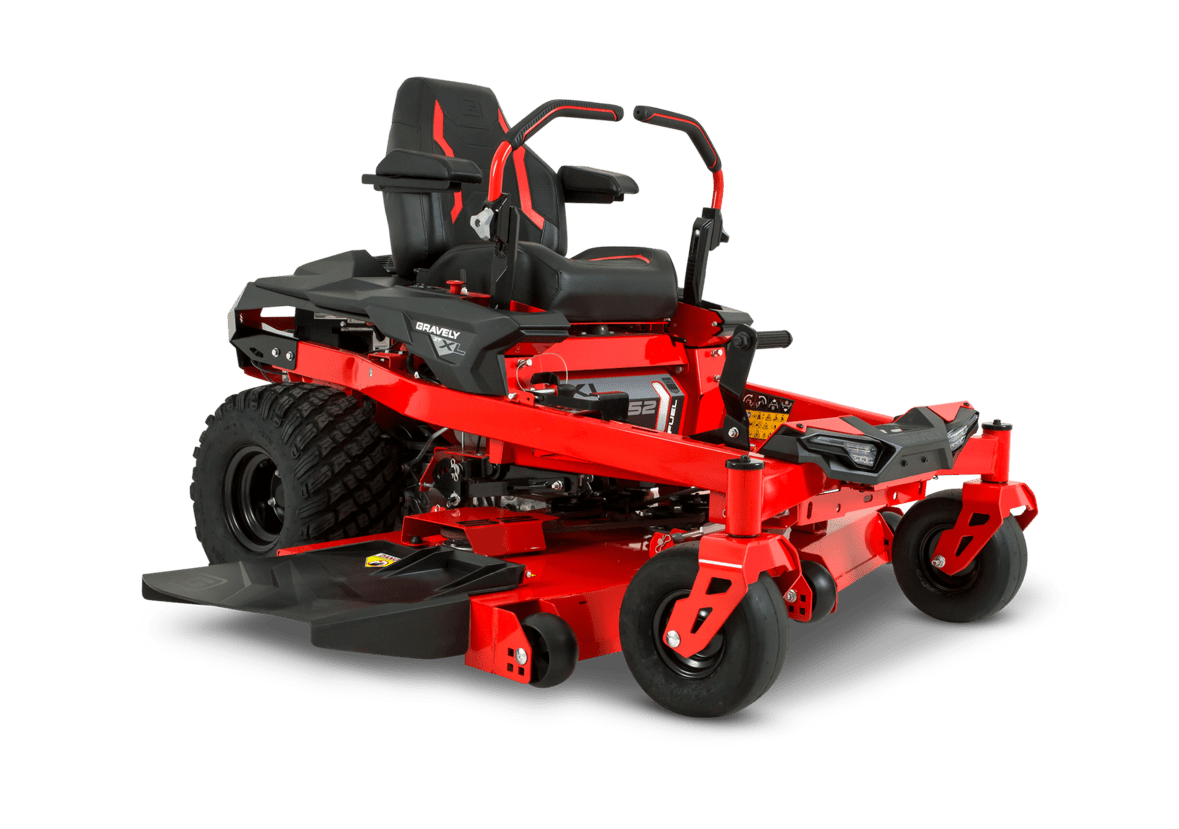

GRAVELY ZTXL 52 ZERO TURN MOWER
CUTS BIG JOBS DOWN TO SIZE.
The ZT XL 52″ is built for big jobs. This residential unit is packed with heavy-duty features that make users forget they’re not on a commercial mower. Designed with a fully welded tubular frame for a strong, stable backbone, Gravely’s legendary performance shines through.
This unit’s Hydro-Gear ZT-2800 transaxles provide increased torque, a smoother ride, and longer life. Our 4.5 inch deep fabricated deck features an optimised airflow design to produce best in class cut quality and discharge performance. Your lawn is sure to be the envy of your neighbours with Gravely’s legendary quality.
The professional-grade quality of the ZT XL 52″ was built for big jobs and is packed with features including:
11-Gauge Fabricated Deck
Hydro-Gear Transaxles
Fully Welded Tubular Frame
23hp Kawasaki FR691 V-Twin Engine
The ZT XL 52″ is built for big jobs. This residential unit is packed with heavy-duty features that make users forget they’re not on a commercial mower. Designed with a fully welded tubular frame for a strong, stable backbone, Gravely’s legendary performance shines through.
This unit’s Hydro-Gear ZT-2800 transaxles provide increased torque, a smoother ride, and longer life. Our 4.5 inch deep fabricated deck features an optimised airflow design to produce best in class cut quality and discharge performance. Your lawn is sure to be the envy of your neighbours with Gravely’s legendary quality.
The professional-grade quality of the ZT XL 52″ was built for big jobs and is packed with features including:
11-Gauge Fabricated Deck
Hydro-Gear Transaxles
Fully Welded Tubular Frame
23hp Kawasaki FR691 V-Twin Engine
Product Description:
| Model | AGU915263 |
| Engine Manufacturer | Kawasaki FR691V |
| Horsepower / Displacement | 23 HP / 726 CC |
| Drive System | Hydro-Gear ZT-2800 Transaxles |
| Fuel Capacity | 10.5 L |
| Ground Speed | 12 KM/H Forwards, 4.8 KM/H Backwards |
| Deck Size | 52″ |
| Deck Material | 11 GA. |
| Deck Construction | Fabricated |
| Number Of Spindles | 3 |
| Blade Tip Speed (FPM) | 18,000 FPM |
| Spindle Housing Material | Steel |
| Spindle Bearings | Sealed Bearings |
| Deck Engagement | Electric Warner |
| Deck Lift System | Foot Operated. Dial Selection |
| Cutting Width | 52 Inch |
| Cutting Positions / Height | 13 Cutting Positions / 38.1 MM – 114 MM |
| Wheels Front | 11 X 6 – 5 Smooth Pneumatic |
| Wheels Rear | 20 x 10 – 10 Turf |
| Seat | 18 Inch Plush High Back W/ Padded Arm Rests. Seat Slider & Seat Isolation Standard |
| Foldable ROPS | N/A |
| Weight | 308.8 KG |
| Length | 1968.5 MM |
| Width | 1413 MM With Chute Up, 1630.6 MM With Chute Down |
| Height | 1066.8 MM |
| Warranty | 4 Year / 400 Hour |
