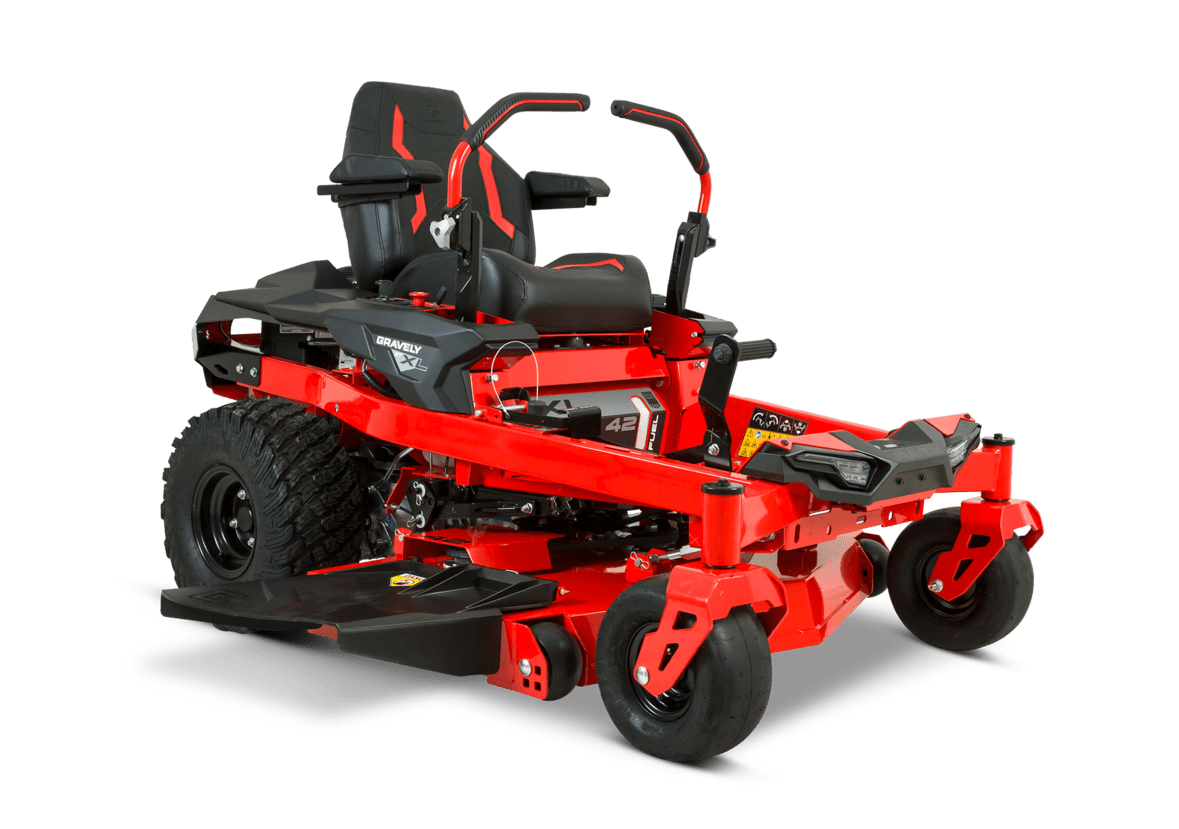

GRAVELY ZTXL 42 ZERO TURN MOWER
CUTS BIG JOBS DOWN TO SIZE.
The ZT XL 42″ cuts big jobs down to size. This is a residential machine with heavy-duty features that make users forget they’re not on a commercial mower. With a fully fabricated tubular frame welded into a singular piece, this unit provides a strong, stable backbone you won’t get from a competitive bolted multi-sectional frame.
This unit features Hydro-Gear ZT-2800 transaxles, providing increased torque, a smoother ride, and a longer lifespan. Paired with an 11-gauge 4.5-inch deep fabricated deck, this unit has an optimised airflow design to produce the best cut quality and discharge performance. The ZT XL is built for big jobs.
Built to a commercial standard with residential users in mind, this unit is designed to give you the best results for your lawn.
11-Gauge Fabricated Deck
Hydro-Gear Transaxles
Fully Welded Tubular Frame
21.5hp Kawasaki FR651 V-Twin Engine
The ZT XL 42″ cuts big jobs down to size. This is a residential machine with heavy-duty features that make users forget they’re not on a commercial mower. With a fully fabricated tubular frame welded into a singular piece, this unit provides a strong, stable backbone you won’t get from a competitive bolted multi-sectional frame.
This unit features Hydro-Gear ZT-2800 transaxles, providing increased torque, a smoother ride, and a longer lifespan. Paired with an 11-gauge 4.5-inch deep fabricated deck, this unit has an optimised airflow design to produce the best cut quality and discharge performance. The ZT XL is built for big jobs.
Built to a commercial standard with residential users in mind, this unit is designed to give you the best results for your lawn.
11-Gauge Fabricated Deck
Hydro-Gear Transaxles
Fully Welded Tubular Frame
21.5hp Kawasaki FR651 V-Twin Engine
Product Description:
Specifications
| Model | AGU915262 |
| Engine Manufacturer | Kawasaki FR651V |
| Horsepower / Displacement | 21.5 HP / 726 CC |
| Drive System | Hydro-Gear® ZT-2800 Transaxles |
| Fuel Capacity | 10.5 L |
| Ground Speed | 12 KM/H, Forwards 4.8 KM/H Backwards |
| Deck Size | 42″ |
| Deck Material | 11 GA. |
| Deck Construction | Fabricated |
| Number Of Spindles | 3 |
| Blade Tip Speed (FPM) | 18,000 FPM |
| Spindle Housing Material | Steel |
| Spindle Bearings | Sealed Bearings |
| Deck Engagement | Electric Warner |
| Deck Lift System | Foot Operated. Dial Selection |
| Cutting Width | 42 Inch |
| Cutting Positions / Height | 13 Cutting Positions / 38.1 MM – 114 MM |
| Wheels Front | 11 X 6 – 5 Smooth Pneumatic |
| Wheels Rear | 20 x 10 – 8 Turf |
| Seat | 18 Inch Plush High Back W/ Padded Arm Rests. Seat Slider & Seat Isolation Standard |
| Foldable ROPS | N/A |
| Weight | 300.7 KG |
| Length | 1968.5 MM |
| Width | 1170.9 MM With Chute Up, 1379.2 MM With Chute Down |
| Height | 1066.8 MM |
| Warranty | 4 Year / 400 Hour |
