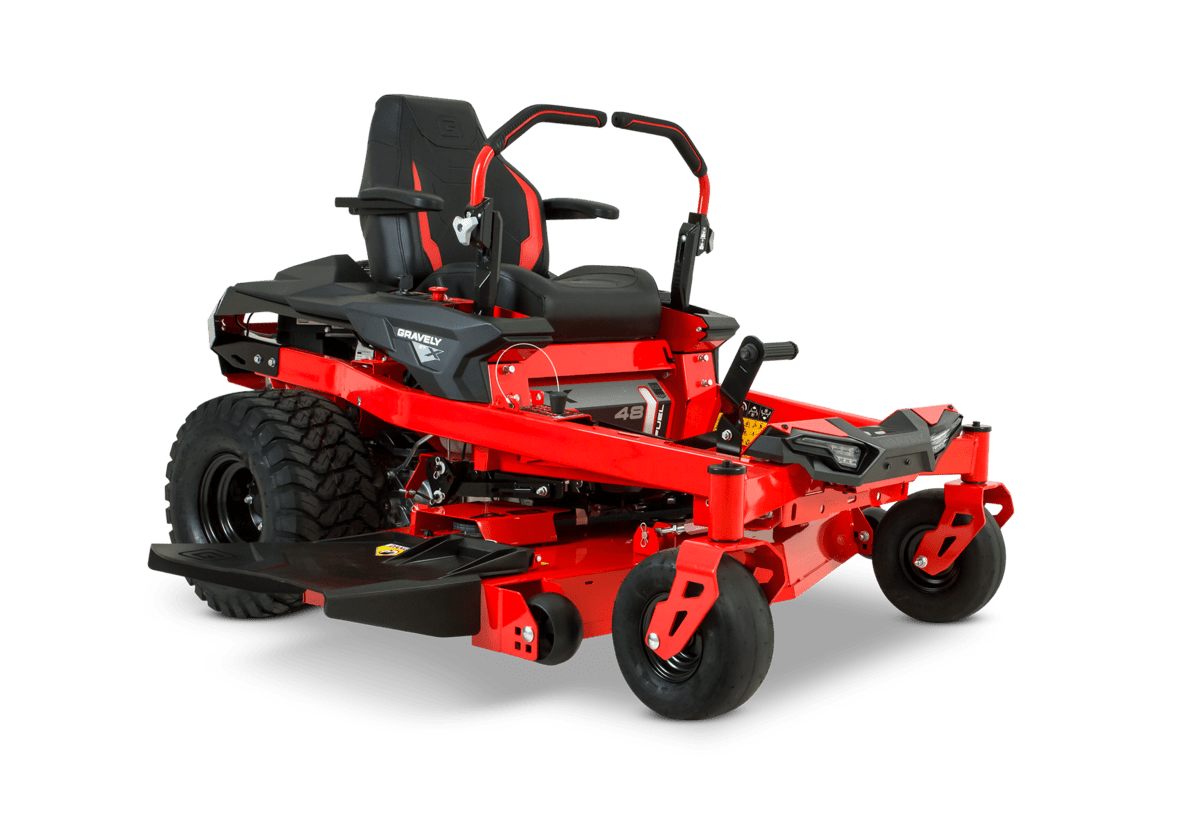

GRAVELY ZTX 48 ZERO TURN MOWER
COMMERCIAL PEDIGREE. RESIDENTIAL ADDRESS.
The ZT X 48″ is designed for homeowners who take their lawn care seriously. This unit brings commercial-grade precision and legendary Gravely performance to your very own backyard. With a simple and intuitive cutting selection solution, all it takes is a press of the pedal to raise the deck, turn the dial and you’re off.
This unit’s 11-gauge fabricated deck features an optimised airflow design to produce best-in-class cut quality and discharge performance. Coupled with a Kawasaki V-Twin Engine, this mower is designed for those who want to upgrade their lawn game.
Built to a commercial standard with residential users in mind, this unit is designed to give you the best results for your lawn.
11-Gauge Fabricated Deck
Cut Selection
EZT Transaxles
Fully Welded Tubular Frame
23hp Kawasaki FR691 V-Twin Engine
The ZT X 48″ is designed for homeowners who take their lawn care seriously. This unit brings commercial-grade precision and legendary Gravely performance to your very own backyard. With a simple and intuitive cutting selection solution, all it takes is a press of the pedal to raise the deck, turn the dial and you’re off.
This unit’s 11-gauge fabricated deck features an optimised airflow design to produce best-in-class cut quality and discharge performance. Coupled with a Kawasaki V-Twin Engine, this mower is designed for those who want to upgrade their lawn game.
Built to a commercial standard with residential users in mind, this unit is designed to give you the best results for your lawn.
11-Gauge Fabricated Deck
Cut Selection
EZT Transaxles
Fully Welded Tubular Frame
23hp Kawasaki FR691 V-Twin Engine
Product Description:
Specifications
| Model | AGU915276 |
| Engine Manufacturer | Kawasaki FR651V |
| Horsepower / Displacement | 21.5 HP / 726 CC |
| Drive System | Hydro-Gear® ZT2200 Transaxles |
| Fuel Capacity | 10.5 L |
| Ground Speed | 11.2 KM/H Forwards, 4.8 KM/H Backwards |
| Deck Size | 48″ |
| Deck Material | 11 GA. |
| Deck Construction | Fabricated |
| Number Of Spindles | 3 |
| Blade Tip Speed (FPM) | 18,000 FPM |
| Spindle Housing Material | Steel |
| Spindle Bearings | Sealed Bearings |
| Deck Engagement | Electric Warner |
| Deck Lift System | Foot Operated. Dial Selection |
| Cutting Width | 48 Inch |
| Cutting Positions / Height | 13 Cutting Positions / 38.1 MM – 114 MM |
| Wheels Front | 11 X 6 – 5 Smooth Pneumatic |
| Wheels Rear | 20 x 10 – 8 Turf |
| Seat | 18 Inch Plush High Back W/ Padded Arm Rests |
| Foldable ROPS | N/A |
| Weight | 273.5 KG |
| Length | 1968.5 MM |
| Width | 1384.3 MM With Chute Up, 1530 MM With Chute Down |
| Height | 1038.8 MM |
| Warranty | 3 Year / 300 Hour |
