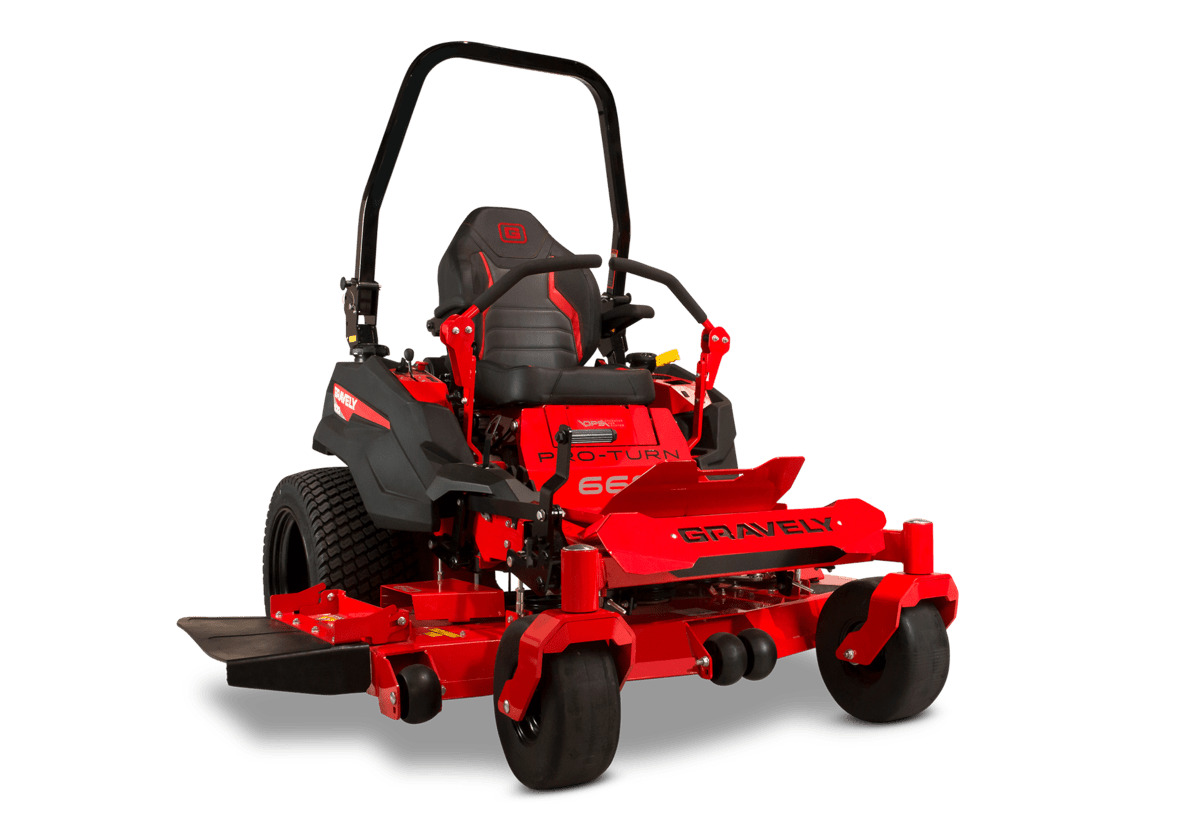

GRAVELY PRO TURN 660 ZERO TURN MOWER
Even on the roughest terrain, this unit effortlessly glides across the grass while still allowing for optimum operator control. Its 47.9 L fuel capacity means you can get the time consuming jobs done all at once without needing to slow down. Feel your best when using the best. There’s nothing quite like the Pro-Turn range.
Zero Turn Mower Specs
Ground Speed - Forward
Up To 24.1 km/h
Brakes
Hand Park Brake
Seat
High back bolstered w/ suspension pod system
Construction
Frame 1" x 3" STEEL Tubular frame welded
ROPS
Foldable ROPS standard
Controls
Hand-operated choke, throttle, ignition switch, electric mower clutch, hand park brakes
Cup Holder
Yes
Deck System
Fabricated X-Factor 3
Deck Lift
Foot operated
Deck Construction
Fabricated 7 Gauge with ¼” spindle reinforcement
Blade Tip Speed
18,000 FPM
Blade Drive
V-belt drive to spindles with electric clutch. Spring tension idler pulleys for extended belt life
Spindles
Forged Aluminium with sealed ball bearings
Drive System
Parker HTG 16cc Dual Hydrostatic Transmission
Steering
Twin-lever steering provides independent control of each drive wheel. Speed, forward, reverse, and turns are all controlled with hand-operated controls
Engine and Fuel Specs
Engine
Kawasaki FX1000V
Type
Air cooled, 90-degree V-twin, normally aspirated petrol engine
Engine (cc)
999 cc
Horsepower
35 hp
Cooling
Air cooled flywheel fan
Fuel
Unleaded fuel - maximum of 10% ethanol in fuel (see engine manufacturers specifications)
Fuel Filter
Replaceable, automotive-type
Oil Filter
Spin-on engine oil filter / Total oil capacity 1.9 litres with filter
Air Filter
Multi-Stage remote canister heavy duty air filter system
Fuel Capacity
47.9 L
Governor
Mechanical
Safety Features
Safety Features
Operator presence system connected to clutch, seat, and park brakes
Mowing Deck Specs
Kit - Mulch
Available Optional Accessory
Hydrostatic Drive System Specs
Hydrostatic Drive System
Dual hydrostatic
Drive Cooling
Transmission mounted fans
Transmission
Parker HTG Transmission
Cutting Dimensions
Cutting Widths
60" (1524 mm) side discharge
Cutting Height(s)
19 cutting positions / 25.4 mm – 139.7 mm
