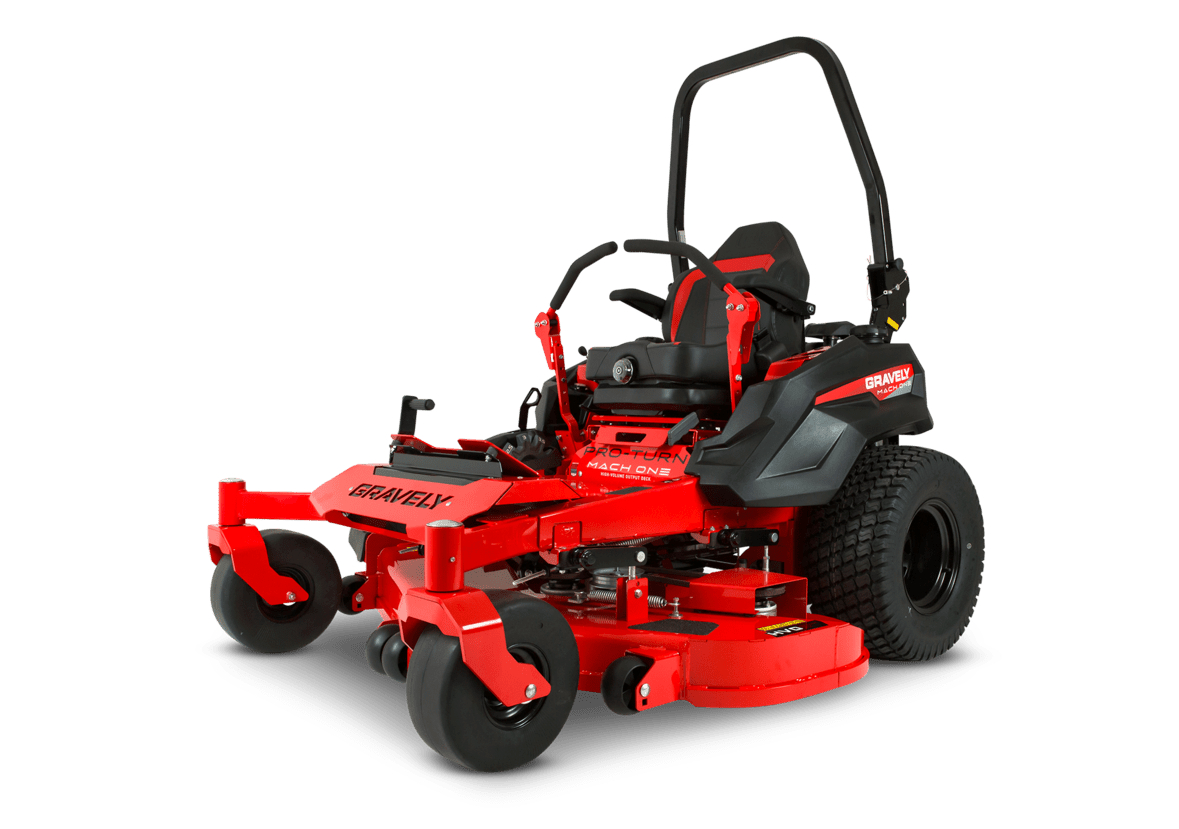

GRAVELY PRO-TURN MACH ONE 60 EFI ZERO TURN MOWER
Whether it’s thick wet conditions, overgrown properties, or stalky grasses in its path, the Mach One easily cuts it down to size. Its High-Volume Output deck with tunnel chamber directs clippings away from the blades after they’re cut to keep them from bogging down.
Specifications
Warranty Information
Domestic Warranty
5 Years / 1250 Hour Domestic Warranty
Commercial Warranty
5 Years / 1250 Hour Commercial Warranty
Hire/Rental Warranty
90 Day Hire / Rental Warranty
Miscellaneous
Blade(s)
3 x Bar blades
Dimension Specs
Dry Weight
681 kg
Height
1930 mm ROPS up, 1213 mm ROPS down
Width
1600 mm With chute up
Overall Length
2190 mm
Zero Turn Mower Specs
Ground Speed - Forward
Up to 21 km/h
Ground Speed - Reverse
Up to 9.5 km/h
Brakes
Hand brake
Seat
High back comfort with suspension and padded armrests
Construction
STEEL Tubular frame welded
ROPS
Foldable ROPS Standard
Controls
Hand-operated choke, throttle, ignition switch, electric mower clutch, Hand Park brakes
Cup Holder
Yes
Deck System
X-Factor® 3 Fabricated
Deck Lift
Foot-operated
Deck Construction
Fabricated 7 Gauge w' 1/4" Spindle Reinforcement
Blade Tip Speed
18633 FPM
Blade Drive
V-belt drive to spindles with electric clutch. Spring tension idler pulleys for extended belt life
Spindles
Forged Aluminium with sealed ball bearings
Drive System
16cc Parker HTG transmission
Discharge Chute
High density, rubberised
Steering
Twin-lever steering provides independent control of each drive wheel. Speed, forward, reverse, and turns are all controlled with hand-operated controls.
Engine and Fuel Specs
Engine
Kawasaki FX1000V EFI
Type
Air cooled, 90-degree V-twin, EFI Petrol Engine
Engine (cc)
999 cc
Horsepower
38.5 hp
Cooling
Air cooled flywheel fan
Fuel
Unleaded fuel - maximum of 10% ethanol in fuel (see engine manufacturers specifications)
Fuel Filter
Replaceable, automotive-type
Oil Filter
Spin-on engine oil filter / Total oil capacity 1.9 litres with filter
Air Filter
Multi-Stage remote canister heavy duty air filter system
Fuel Capacity
50.7L
Governor
Mechanical
Safety Features
Safety Features
Operator presence system connected to clutch, seat, and park brakes
Hydrostatic Drive System Specs
Drive Cooling
Transmission mounted fans
Cutting Dimensions
Cutting Widths
60" (1524 mm) cut side discharge.
Cutting Height(s)
25 mm – 140 mm
