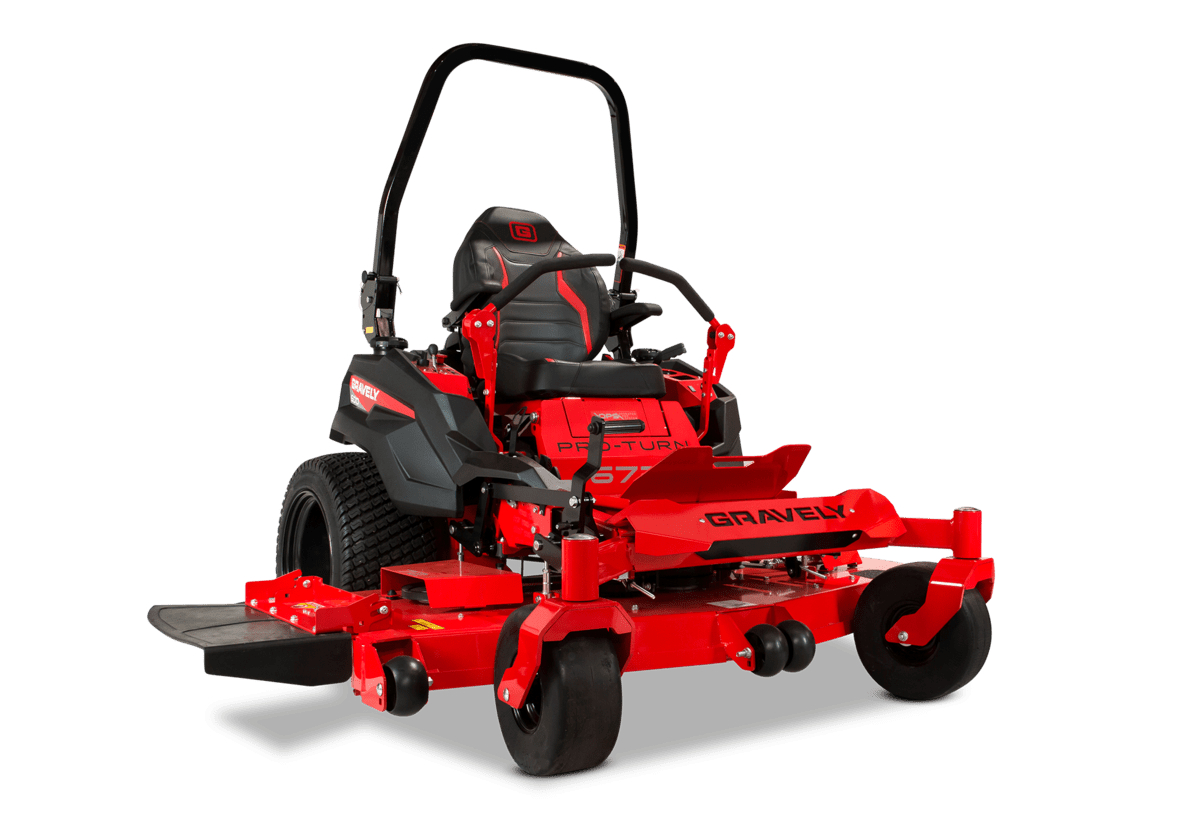

GRAVELY PRO-TURN 672 EFI ZERO TURN MOWER
What’s special about this unit is its EFI engine. EFI systems maintain optimum fuel to air ratios, eliminate engine stoppages, spark plug issues, and other common issues. Plus, you’re doing your lawn a favour as these engines are much better for the environment. This unit is sure to impress even the most experienced lawn enthusiasts.
Specifications
Warranty Information
Domestic Warranty
5 Year / 1500 Hour Domestic Warranty
Commercial Warranty
5 Year / 1500 Hour Commercial Warranty
Hire/Rental Warranty
90 Day Hire / Rental Warranty
Miscellaneous
Blade(s)
3 x Bar blades
Dimension Specs
Dry Weight
753.4 kg
Height
1816 mm with ROPS up, 1214 mm wth ROPS down
Width
1905 mm with chute up
Overall Length
2108 mm
Zero Turn Mower Specs
Ground Speed - Forward
Up To 24.1 km/h
Brakes
Hand Park Brake
Tyres - Drive
26 x 12 x 16 Low profile turf radial
Seat
High back bolstered with suspension POD system
Construction
Frame 1" x 3" STEEL Tubular frame welded
ROPS
Foldable ROPS Standard
Controls
Hand-operated throttle, ignition switch, electric mower clutch, hand park brakes
Cup Holder
Yes
Deck System
Fabricated X-Factor 3
Deck Lift
Foot Operated
Deck Construction
Fabricated X-Factor 3
Blade Tip Speed
18,000 FPM
Blade Drive
V-belt drive to spindles with electric clutch. Spring tension idler pulleys for extended belt life
Spindles
Forged Aluminium with sealed ball bearings
Drive System
Parker HTG 16cc Dual Hydrostatic Transmission
Discharge Chute
High density, rubberised
Steering
Twin-lever steering provides independent control of each drive wheel. Speed, forward, reverse, and turns are all controlled with hand-operated controls
Engine and Fuel Specs
Engine
Kawasaki FX1000 EFI
Type
Air cooled, 90-degree V-twin, normally aspirated petrol engine
Engine (cc)
999 cc
Horsepower
38.5 hp
Cooling
Air cooled flywheel fan
Fuel
Unleaded fuel - maximum of 10% ethanol in fuel (see engine manufacturers specifications)
Fuel Filter
Replaceable, automotive-type
Oil Filter
Spin-on engine oil filter / Total oil capacity 1.9 litres with filter
Air Filter
Multi-Stage remote canister heavy duty air filter system
Fuel Capacity
47.9 L
Governor
Mechanical
Safety Features
Safety Features
Operator presence system connected to clutch, seat, and park brakes
Mowing Deck Specs
Kit - Mulch
Available Optional Accessory
Hydrostatic Drive System Specs
Hydrostatic Drive System
Dual hydrostatic
Drive Cooling
Transmission mounted fans
Transmission
Parker HTG Transmission
Cutting Dimensions
Cutting Widths
72" (1829 mm) side discharge
Cutting Height(s)
19 Cutting positions / 25 mm – 140 mm
