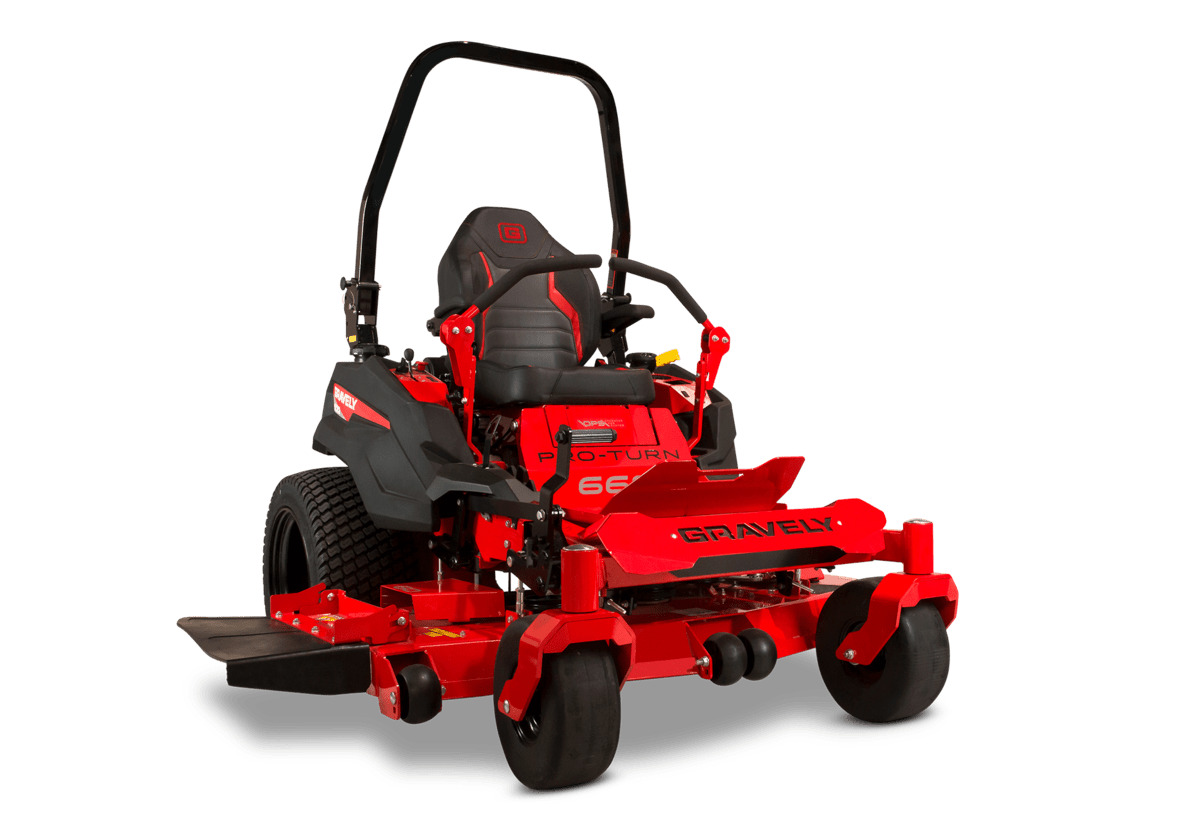

GRAVELY PRO-TURN 660 EFI ZERO TURN MOWER
This unit’s X-Factor 3 Deck has been completely redesigned for better grass dispersion. Its new look is constructed from high-quality 7-gauge steel to deliver years of solid performance. It features large diameter tires for a smoother ride and more traction in a range of conditions. The Pro-Turn 660 EFI is the best choice for any commercial job that requires a sturdy unit.
Specifications
Warranty Information
Domestic Warranty
5 Year / 1500 Hour Domestic Warranty
Commercial Warranty
5 Year / 1500 Hour Commercial Warranty
Dimension Specs
Dry Weight
726.2 kg
Height
1816 mm with ROPS Up, 1214 mm with ROPS Down
Width
1600 mm with chute up
Overall Length
2108 mm
Zero Turn Mower Specs
Ground Speed - Forward
24.1 km/h
Ground Speed - Reverse
9.6 km/h
Brakes
Hand Park Brake
Seat
High back bolstered with suspension POD system
Construction
Frame 1" x 3" STEEL Tubular frame welded
ROPS
Foldable ROPS Standard
Controls
Hand-operated choke, throttle, ignition switch, electric mower clutch, hand park brakes
Cup Holder
Yes
Deck System
Fabricated X-Factor 3
Deck Lift
Foot operated
Deck Construction
Fabricated 7 Gauge with ¼” spindle reinforcement
Blade Tip Speed
18,000 FPM
Spindles
Forged Aluminium with sealed ball bearings
Drive System
Parker HTG 16cc Dual Hydrostatic Transmission
Discharge Chute
High density, rubberised
Steering
Twin-lever steering provides independent control of each drive wheel. Speed, forward, reverse, and turns are all controlled with hand-operated controls
Engine and Fuel Specs
Engine
Kawasaki FX1000V EFI
Type
Air cooled, 90-degree V-twin, normally aspirated petrol engine
Engine (cc)
999 cc
Horsepower
38.5 hp
Cooling
Air cooled flywheel fan
Fuel
Unleaded fuel - maximum of 10% ethanol in fuel (see engine manufacturers specifications)
Fuel Filter
Replaceable, automotive-type
Oil Filter
Spin-on engine oil filter / Total oil capacity 1.9 litres with filter
Air Filter
Multi-Stage remote canister heavy duty air filter system
Fuel Capacity
47.9 L
Governor
Mechanical
Safety Features
Safety Features
Operator presence system connected to clutch, seat, and park brakes
Mowing Deck Specs
Kit - Mulch
Available Optional Accessory
Hydrostatic Drive System Specs
Hydrostatic Drive System
Dual hydrostatic
Drive Cooling
Transmission mounted fans
Transmission
Parker HTG Transmission
Cutting Dimensions
Cutting Widths
60" (1524 mm) side discharge
Cutting Height(s)
19 Cutting positions / 25 mm – 140 mm
