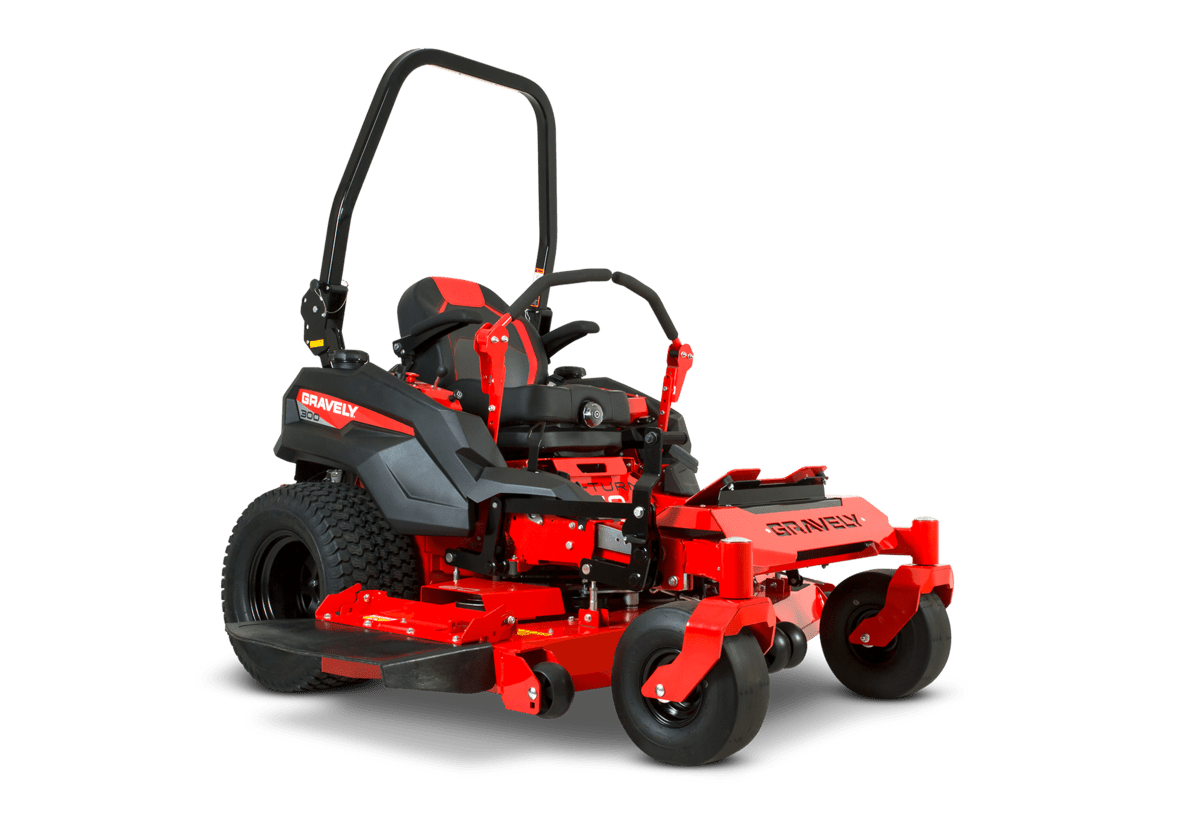

GRAVELY PRO TURN 360 ZERO TURN MOWER
Warranty Information
Domestic Warranty
5 Year / 1250 Hour Domestic Warranty
Commercial Warranty
5 Year / 1250 Hour Commercial Warranty
Miscellaneous
Blade(s)
3 x Bar blades
Dimension Specs
Dry Weight
610.9 kg
Height
1930 mm ROPS up, 1214 mm ROPS down
Width
1600 mm With chute up
Overall Length
2108 mm
Zero Turn Mower Specs
Ground Speed - Forward
Up To 17.7 km/h
Brakes
Hand brake
Seat
High back comfort with suspension and padded armrests
Construction
STEEL Tubular frame welded
Hour Meter
Standard
ROPS
Foldable ROPS Standard
Controls
Hand-operated choke, throttle, ignition switch, electric mower clutch, Hand Park brakes
Cup Holder
Yes
Deck System
X-Factor® 3 Fabricated
Deck Lift
Foot-operated
Deck Construction
Fabricated 7 Gauge w' 1/4" Spindle Reinforcement
Blade Tip Speed
18000 FPM
Blade Drive
V-belt drive to spindles with electric clutch. Spring tension idler pulleys for extended belt life
Spindles
Forged Aluminium with sealed ball bearings
Drive System
Parker HTJ 12cc Dual Hydrostatic Transmission
Steering
Twin-lever steering provides independent control of each drive wheel. Speed, forward, reverse, and turns are all controlled with hand-operated controls
Engine and Fuel Specs
Engine
Kawasaki FX850V EFI
Type
Air cooled, 90-degree V-twin, normally aspirated petrol engine
Engine (cc)
852 cc
Horsepower
29.5 hp
Cooling
Air cooled flywheel fan
Fuel
Unleaded fuel - maximum of 10% ethanol in fuel (see engine manufacturers specifications)
Fuel Filter
Replaceable, automotive-type
Oil Filter
Spin-on engine oil filter / Total oil capacity 2.1 litres with filter
Air Filter
Multi-Stage remote canister heavy duty air filter system
Fuel Capacity
47.3 L
Governor
Mechanical
Safety Features
Safety Features
Operator presence system connected to clutch, seat, and park brakes
Hydrostatic Drive System Specs
Drive Cooling
Transmission mounted fans
Cutting Dimensions
Cutting Widths
60" (1524 mm) cut side discharge
Cutting Height(s)
25 mm – 139 mm
