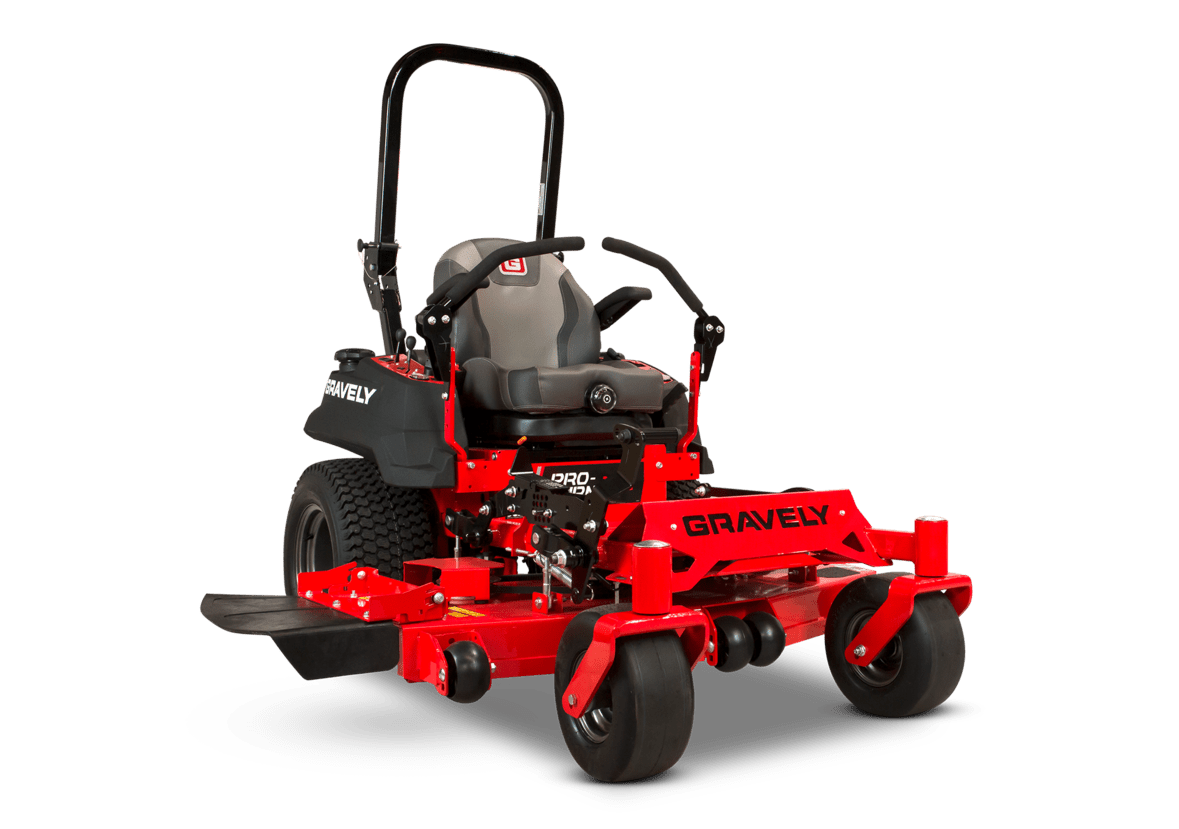

GRAVELY PRO-TURN 148 ZERO TURN MOWER
Gravely’s exclusive Constant Belt Tension System (CBT) ensures constant belt tension, maintaining consistent blade tip speed and cutting results. This unit’s 7-gauge X Factor II Deck is fabricated from top to bottom, providing peace of mind with its industrial strength. The Pro-Turn 100 includes a full suspension seat that provides improved lateral stability and vibration control, ensuring comfort all day long.
Specifications
Warranty Information
Domestic Warranty
5 Year / 1000 Hour Domestic Warranty
Commercial Warranty
5 Year / 1000 Hour Commercial Warranty
Miscellaneous
Blade(s)
3
Dimension Specs
Dry Weight
481.7 kg
Height
1727 mm With ROPS Up, 1219 mm With ROPS Down
Width
1270 mm With Chute Up
Overall Length
1993 mm
Zero Turn Mower Specs
Ground Speed - Forward
Up To 16 km/h
Brakes
Hand Park Brake
Seat
High Back W/ Full Suspension And Molded Arm Rests
Hour Meter
Standard
ROPS
Standard
Cup Holder
Yes
Deck System
X-Factor® II Fabricated
Deck Lift
Foot Operated
Deck Construction
Fabricated 7 Gauge w' 1/4" Spindle Reinforcement
Blade Tip Speed
18,000 FPM
Spindles
Forged Aluminium with sealed ball bearings
Drive System
Hydro-Gear® ZT-3400 Transaxles
Engine and Fuel Specs
Engine
Kawasaki FX691V
Engine (cc)
726 cc
Horsepower
22 hp
Fuel Capacity
37.7 L
Mowing Deck Specs
Kit - Mulch
Available Optional Accessory
Cutting Dimensions
Cutting Widths
48" (1219 mm) cut side discharge
Cutting Height(s)
17 Cutting Positions / 25 mm x 127 mm
