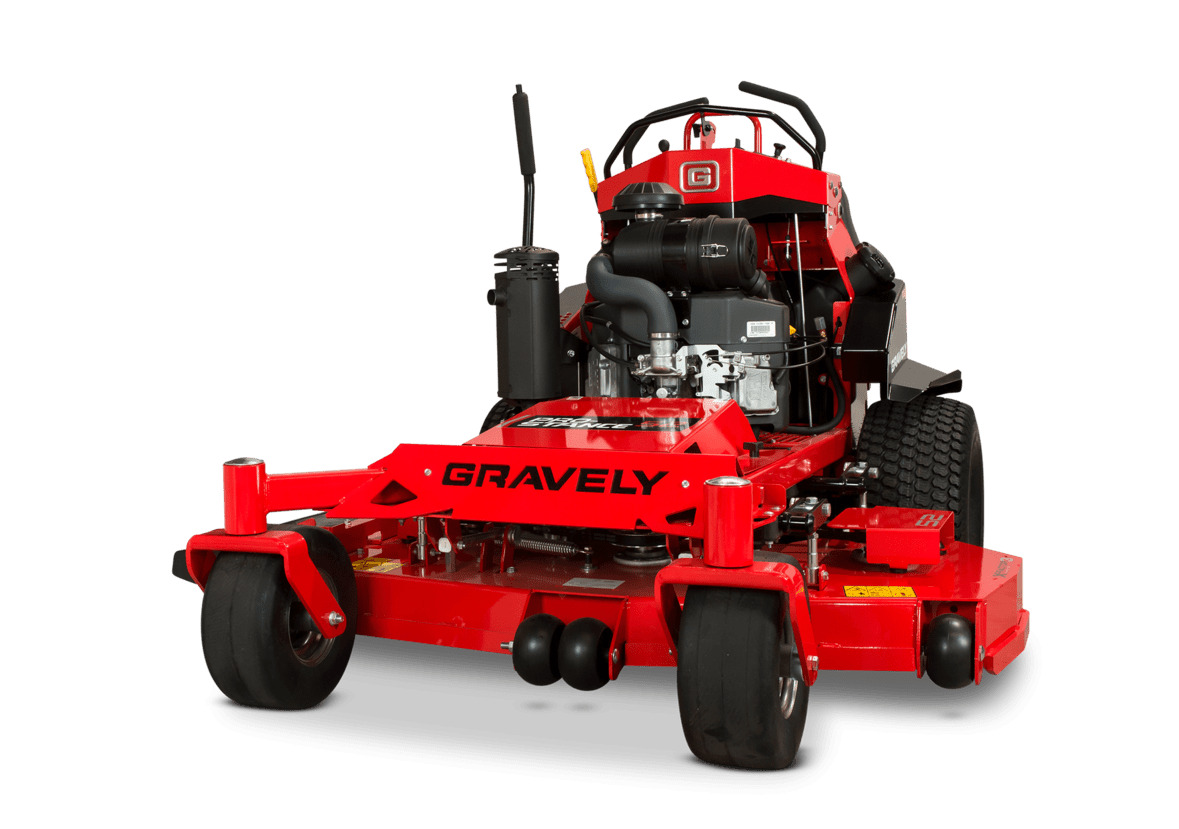

GRAVELY PRO-STANCE 52 ZERO TURN MOWER

Specifications

Warranty Information

Domestic Warranty

5 Year / 1000 Hour Domestic Warranty

Commercial Warranty

5 Year / 1000 Hour Commercial Warranty

Miscellaneous

Blade(s)

3

Dimension Specs

Dry Weight

460.4 kg

Height

1219 mm

Width

1409 mm with chute up

Overall Length

1540 mm

Zero Turn Mower Specs

Ground Speed - Forward

Up To 14.4 km/h

Brakes

Hand-operated Park brake

Construction

Frame 1" x 3" STEEL Tubular frame welded

ROPS

No

Controls

Hand-operated choke, throttle, ignition switch, electric mower clutch, Hand lever operated hand brake

Deck System

Fabricated 4 point lift

Deck Lift

Dual deck height adjustment

Deck Construction

Fabricated 7 Gauge

Blade Tip Speed

18,000 FPM

Blade Drive

V-belt drive to spindles with electric clutch. Spring tension idler pulleys for extended belt life

Spindles

Forged Aluminium with sealed ball bearings

Drive System

Hydro-Gear® ZT-3400 Transaxle

Discharge Chute

High density, rubberised

Steering

Twin-lever steering provides independent control of each drive wheel. Speed, forward, reverse and turns are all controlled with hand-operated controls

Engine and Fuel Specs

Engine

Kawasaki FX730V

Type

Air cooled, 90-degree V-twin, normally aspirated petrol engine

Engine (cc)

726 cc

Horsepower

23.5 hp

Cooling

Air cooled. Fly-wheel fan

Fuel

Unleaded fuel - maximum of 10% ethanol in fuel (see engine manufacturers specifications)

Fuel Filter

Replaceable, automotive-type

Oil Filter

Spin-on engine oil filter / Total oil capacity 2.1 litres with filter

Air Filter

Dual element with reinforced primary filter

Fuel Capacity

33.9 L

Governor

Mechanical

Hydrostatic Drive System Specs

Hydrostatic Drive System

Dual hydrostatic

Drive Cooling

Transmission mounted fans

Drive Filter

Yes

Cutting Dimensions

Cutting Widths

52" Cut Side Discharge

Cutting Height(s)

38 mm - 127 mm
