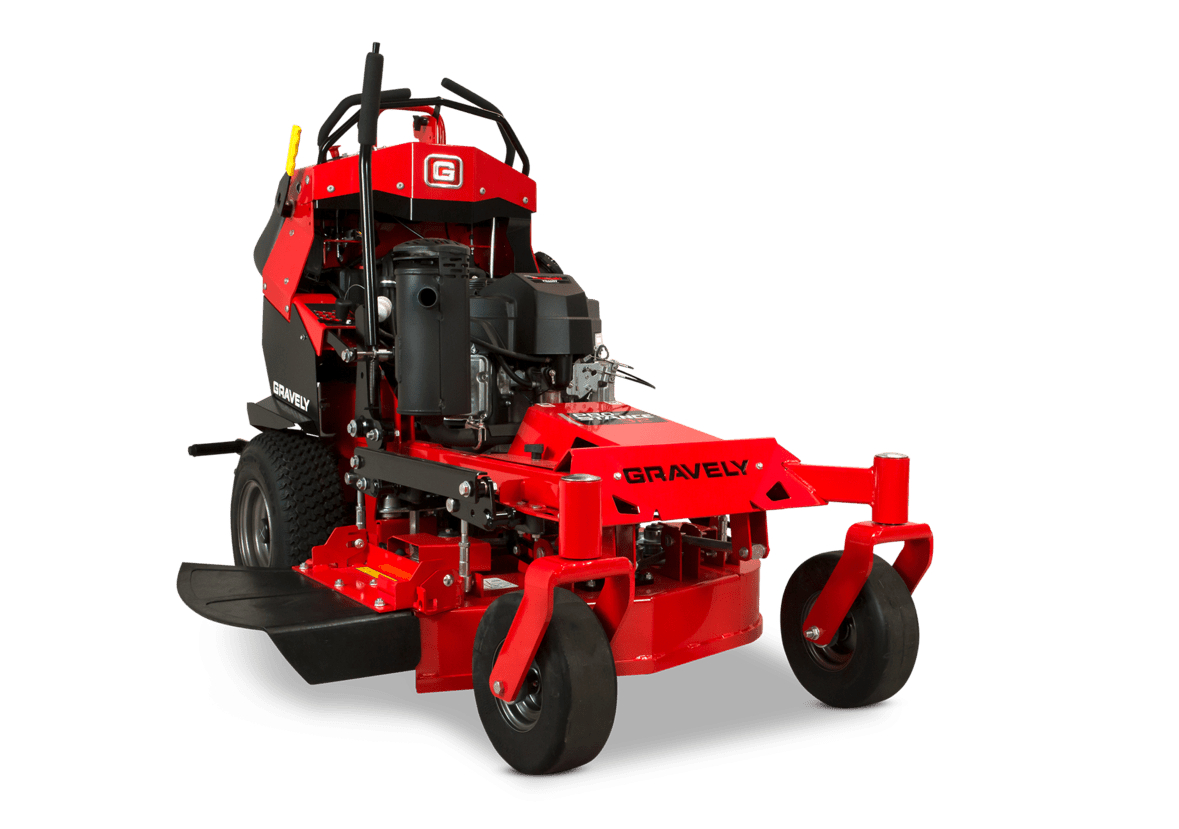

GRAVELY PRO-STANCE 32 ZERO TURN MOWER

Specifications

Warranty Information

Domestic Warranty

5 Year / 1000 Hour Domestic Warranty

Commercial Warranty

5 Year / 1000 Hour Commercial Warranty

Miscellaneous

Blade(s)

2

Dimension Specs

Dry Weight

340.2 kg

Height

1219 mm

Width

851 mm with chute up

Overall Length

1511 mm

Zero Turn Mower Specs

Ground Speed - Forward

Up To 12.8 km/h

Brakes

Hand-operated Park brake

Construction

Frame 1" x 3" STEEL Tubular frame welded

ROPS

No

Controls

Hand-operated choke, throttle, ignition switch, electric mower clutch, Hand lever operated hand brake

Deck System

4 Point Lift Fabricated

Deck Lift

Dual deck height adjustment

Deck Construction

Fabricated 7 Gauge

Blade Tip Speed

18,220 FPM

Blade Drive

V-belt drive to spindles with electric clutch. Spring tension idler pulleys for extended belt life

Spindles

Forged Aluminium with sealed ball bearings

Drive System

Hydro-Gear® ZT-3100 Transaxle

Discharge Chute

High density, rubberised

Steering

Twin-lever steering provides independent control of each drive wheel. Speed, forward, reverse and turns are all controlled with hand-operated controls

Engine and Fuel Specs

Engine

Kawasaki FS600V

Type

Air cooled, 90-degree V-twin, normally aspirated petrol engine

Engine (cc)

603 cc

Horsepower

18.5 hp

Cooling

Air cooled. Fly-wheel fan

Fuel

Unleaded fuel - maximum of 10% ethanol in fuel (see engine manufacturers specifications)

Fuel Filter

Replaceable, automotive-type

Oil Filter

Spin-on engine oil filter / Total oil capacity 1.7 litres with filter

Air Filter

Dual element with reinforced primary filter

Fuel Capacity

22.6 L

Governor

Mechanical

Hydrostatic Drive System Specs

Hydrostatic Drive System

Dual hydrostatic

Drive Cooling

Transmission mounted fans

Drive Filter

Yes

Pumps

Hydro-Gear ZT-3100

Cutting Dimensions

Cutting Widths

32" Cut Side Discharge

Cutting Height(s)

38 mm - 127 mm
