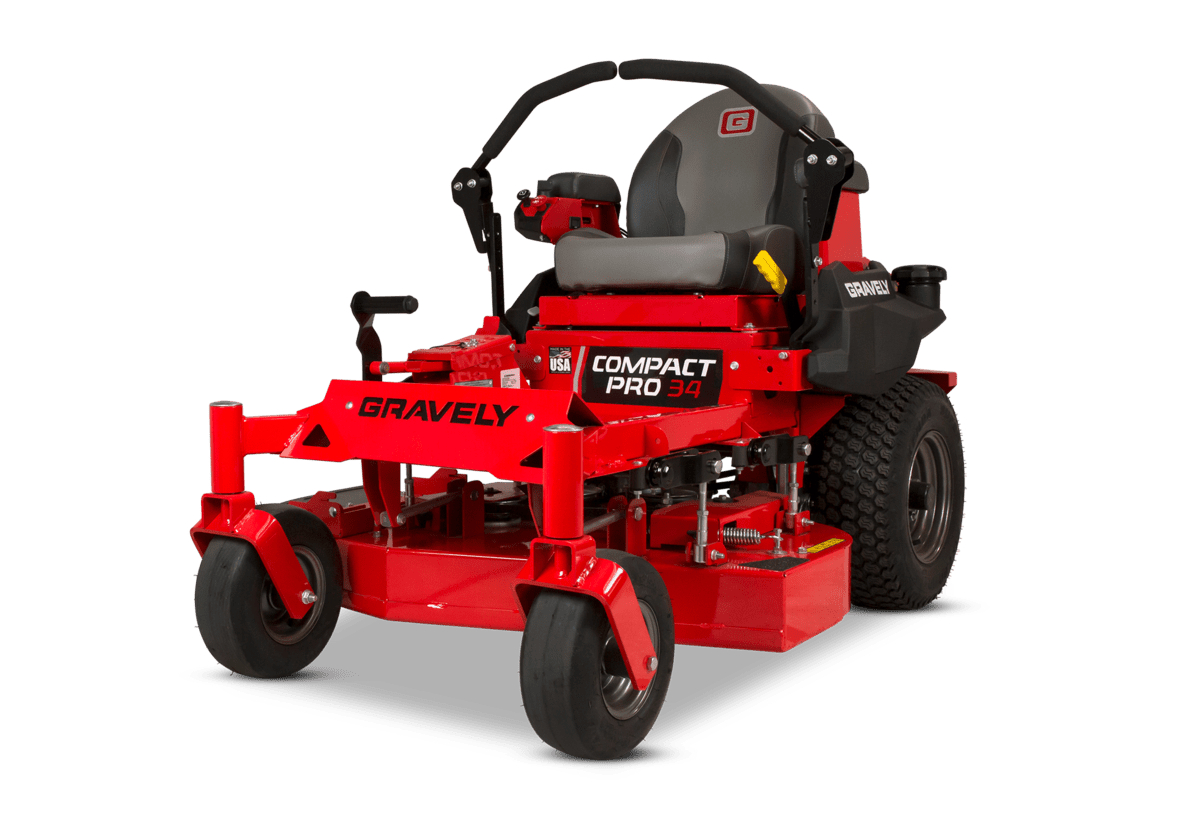

GRAVELY COMPACT PRO 34 ZERO TURN MOWER

Specifications

Warranty Information

Domestic Warranty

4 Year / 750 Hour Domestic Warranty

Commercial Warranty

4 Year / 750 Hour Commercial Warranty

Miscellaneous

Blade(s)

2 x Bar blades

Dimension Specs

Dry Weight

334.3 kg

Height

1155 mm

Width

911.8 mm With chute up

Length

75" (1905 mm)

Zero Turn Mower Specs

Ground Speed - Forward

Up to 11.2 km/h

Brakes

Hand brake

Seat

High back with EVC suspension

Construction

Frame 1" x 3" STEEL Tubular frame welded

ROPS

ROPS not supplied with unit

Controls

Hand-operated choke, throttle, ignition switch, electric mower clutch, Hand Park brakes

Cup Holder

Yes

Deck Lift

Foot-operated

Deck Construction

Fabricated 10 Gauge w' 10 Gauge spindle reinforcement

Blade Tip Speed

17250 FPM

Blade Drive

V-belt drive to spindles with electric clutch. Spring tension idler pulleys for extended belt life

Spindles

Forged Aluminium with sealed ball bearings

Drive System

V-belt drive from engine crankshaft

Discharge Chute

High density, rubberised

Steering

Twin-lever steering provides independent control of each drive wheel. Speed, forward, reverse, and turns are all controlled with hand-operated controls.

Engine and Fuel Specs

Engine

Kawasaki FX481V

Engine (cc)

603 cc

Horsepower

15.5 hp

Cooling

Air cooled flywheel fan

Fuel

Unleaded fuel - maximum of 10% ethanol in fuel (see engine manufacturers specifications)

Fuel Filter

Replaceable, automotive-type

Oil Filter

Spin-on engine oil filter / Total oil capacity 1.7 litres with filter

Air Filter

Multi-Stage remote canister heavy duty air filter system

Fuel Capacity

27.1 L

Governor

Mechanical

Safety Features

Safety Features

Operator presence system connected to clutch, seat, and park brakes

Hydrostatic Drive System Specs

Hydrostatic Drive System

Dual hydrostatic

Drive Cooling

Transmission mounted fans

Pumps

Hydro Gear ZT-3100

Cutting Dimensions

Cutting Widths

34" (863 mm) cut side discharge.

Cutting Height(s)

25 mm - 127 mm
