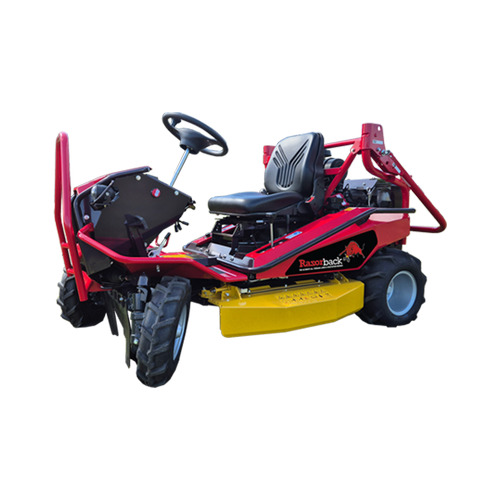

RAZORBACK RIDE ON MOWER 4WD CMX2302 All Terrain Contractor's Mower

THIS ITEM IS PREORDER ONLY DUE TO SUPPLY SHORTAGES - PLEASE CONTACT US TO ORGANISE AN ON SITE DEMONSTRATION
The CMX2302 is the ultimate extreme terrain mower! With the extra horsepower and ground clearance, the impossible can now be reached with this model. Ever thought you could change a set of blades without tools? Not only can you do this, but the deck sides open, making maintenance a breeze. Make yourself comfortable and take control of your scrub with the adjustable steering column and low seat position. This 4WD brushcutter is built for our harsh Australian conditions. See it to believe what it is really capable of!
Product Description:
  • 23HP V-twin vanguard engine
  • Chain driven over head camshaft
  • Selectable 2WD & 4WD from the dashboard on the run
  • A cast iron compact tractor front axle set with planetary hubs
  • High & low ratio gearbox
  • Limited slip diff lock that is selectable from the dashboard
  • Shaft driven cutter deck train
  • Hydrostatic transmission complete with charge pump, oil filter & 7 litre tank
  • Hand & foot control
  • Drum brakes and park brake
  • NO DECK BELTS

Key Specifications

Rated Net Output 23 HP @3600rpm
Weight – fuel tank full 450 Kg
Gradeability 25 degrees
Stability Angle 30 degrees left & right
Max Speed 13.8 km/h
Cutting Width 975 mm
Cutting Height 0 – 150 mm
Fuel Tank 20 litres
Drive Train 4 wheel drive
